Home›All Categories›Lapp Unitronic LiYCY, 0.14 sq.mm, 16 Core, Grey, Signal Cable, PVC FR, With Tin-Plated Copper Braiding

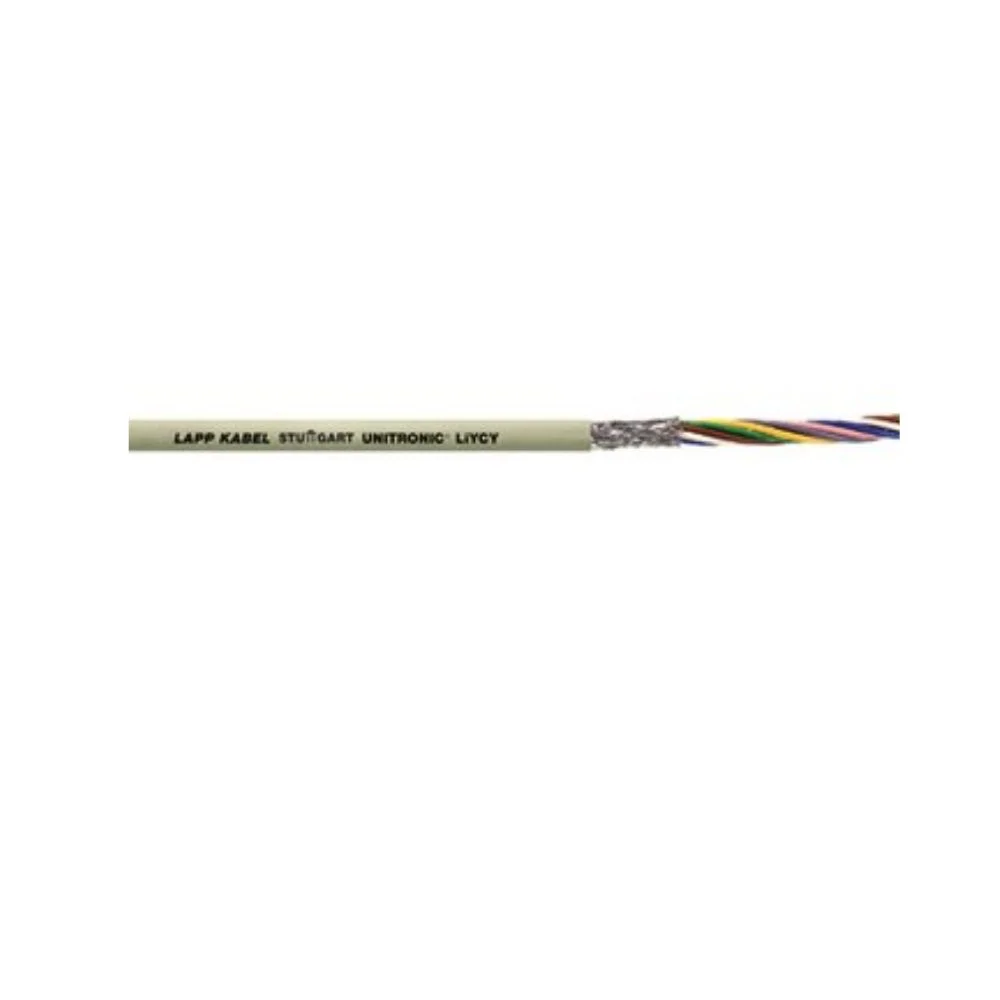

Lapp Unitronic Liycy 0.14 Sq.mm 16 Core Copper Flexible Cable Pebble Grey PVC FR (Flame Retardant) 0034316

Lapp Unitronic LiYCY, 0.14 sq.mm, 16 Core, Grey, Signal Cable, PVC FR, With Tin-Plated Copper Braiding | 0034316

₹271.80 Incl. of Taxes

-42% ₹230.34/Mtr + GST ₹41.46

₹397.13 IN STOCK

Min. Order - 25

Dispatch by : Yeshwanthpur Warehouse , Bangalore Today ℹ
Product Information
  • Ambient Temperature Range
    -40 °C to 80 °C
  • Application Area
    Flexible Fixed Installation
  • Brand
    LAPP Kabel
  • Cable Colour
    Grey
  • Cable Dimension
    16X0.14
  • Cable Resistance
    138 Ω/km
  • Certifications
    CE Marked, EAC Certified
  • Conductor Material
    Bare Copper
  • Conductor Size
    0.14 sq.mm
  • Conductor Stranding Type
    Fine-Wire
  • Conductor Type
    MultiStrand Flexible
  • Copper index
    43.000 kg/km
  • Core Colour Code
    DIN 47100
  • Core identification
    Colours
  • Core Stranding Type
    Layered Stranding
  • Features
    Shielded, Flame-Retardant
  • Insulation Type
    PVC FR
  • Manufacturer Customer Care
    info@lappindia.com, 1800-309-1111
  • Manufacturer Details
    Lapp India Pvt. Ltd. Plot No.98, J & K Jigani Industrial Area, II Phase, BANGALORE SOUTH - 560 105, India
  • Minimum Bending Radius
    6 x Outer Diameter
  • Model
    Unitronic LiYCY
  • No of Core
    16 Core
  • Nominal Diameter
    7 Mm
  • Outer Diameter
    7 mm
  • Reference No
    0034316
  • Resistance Towards
    PWIS-Free
  • Shape of Cable
    Round
  • Shielding Type
    Tin-Plated Copper Braiding
  • Temperature Range
    -40 °C To 80 °C
  • Test Voltage
    1.2 kV
  • Weight
    90 kg/km
